Standard DC/DC Converter for Railway-Application - PCB Mount
No wiring – no development – no risk!
Simply plug in and screw down. That’s how easy it is to install the new 50 W DC/DC converter from intreXis. Eliminating cables reduces installation effort and lowers total system costs.
No additional components are required, and the converter is 100% EN 50155 compliant. This means zero design risk and no development time.
Your benefits at a glance:
• Ultra-wide input voltage range from 14.4 to 154 VDC
• Extremely compact design: only 100 × 60 × 23.6 mm (L/W/H)
• 50 or 60 W output power across the entire extended temperature range from –50 °C to +85 °C
• Excellent EMC performance: Complies not only with EN 50121-3-2, but also with the significantly stricter multimedia device requirements of EN 55032, Class A, with a large safety margin to the limits

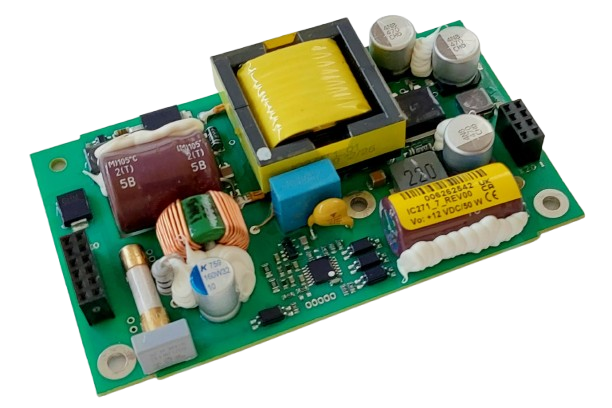

Ultra Wide input (>10:1), super flat 50 W dc/dc converter
| Picture | Part number | Input voltage nominal | Input voltage range | Output 1 | Output 2 | Download |
|---|---|---|---|---|---|---|
 | IC271_7 | 24,36,48,72,110 VDC | 14.4...154 V | +12V/50W | ||
| IC272_7 | 24,36,48,72,110 VDC | 14.4...154 V | +15V/50W | |||
| IC273_7 | 24,36,48,72,110 VDC | 14.4...154 V | +24V/50W | |||
3D PDF: Step file: |
